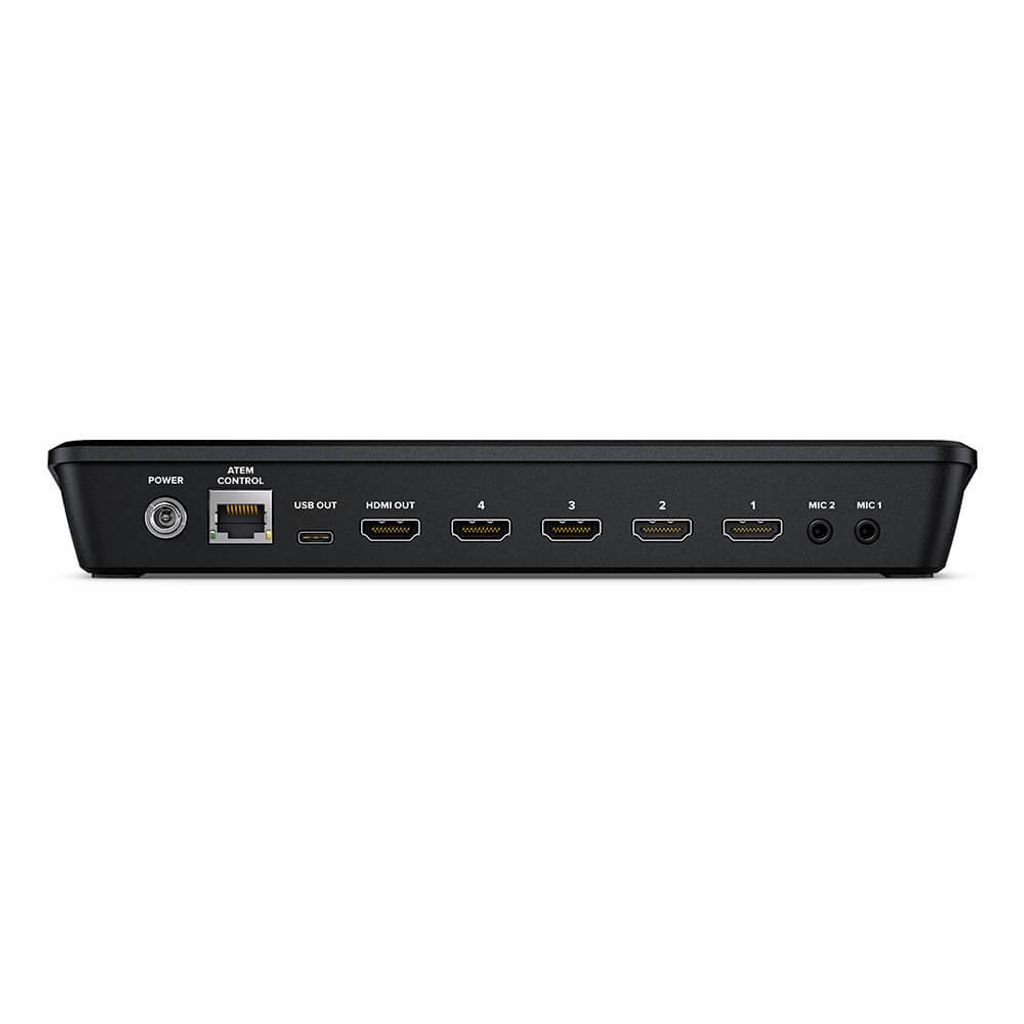

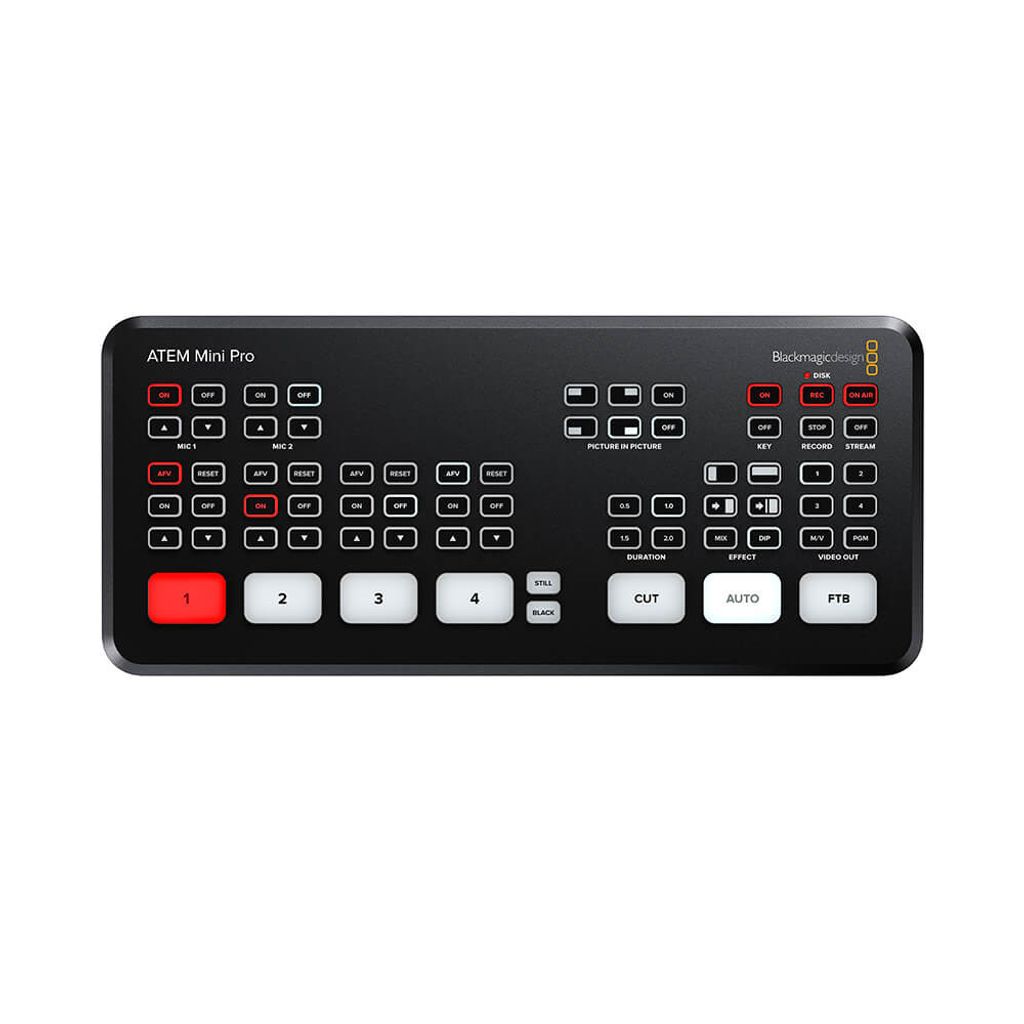

Blackmagic ATEM Mini Pro

Blackmagic Design ATEM Mini Pro bildmixer för streaming

Specifications:
Inputs 4 x HDMI Type A
2 x 3.5 mm Stereo Analog Audio
1 x RJ45 Ethernet
Outputs 1 x HDMI
1 x USB Type-C
Video Input Formats HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs 4 x HDMI
Video Output 1 x HDMI
Audio Input 2 x 3.5 mm Stereo
Other I/O 1 x USB Type-C
1 x RJ45, Gigbit Ethernet
Video Sampling 4:2:2 YUV
Color Precision 10-Bit
Color Space Rec. 709
Color Space Conversion Hardware-Based, Real Time
Embedded Audio 2-Channel Input and Output
Audio Mixer 6-Input, 2-Channel
Media Player 1 x Player with Fill and Key
Still Image Capacity 20
Image Format Support PNG, TGA, BMP, GIF, JPEG, TIFF
Keyers 1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)
Layers Up to 5
Generators 1 x Pattern
2 x Color
DVE Transition Keyer
Monitor Resolution 1366 x 768 or Greater
Operating System Support macOS 10.13, 10.14, or Later
Windows 10
Power Input 1 x Barrel
Voltage 12 V
Power Draw 18 W
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°
Relative Humidity 0 to 90% Non-Condensing
Dimensions 9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight 19.4 oz / 550 g
