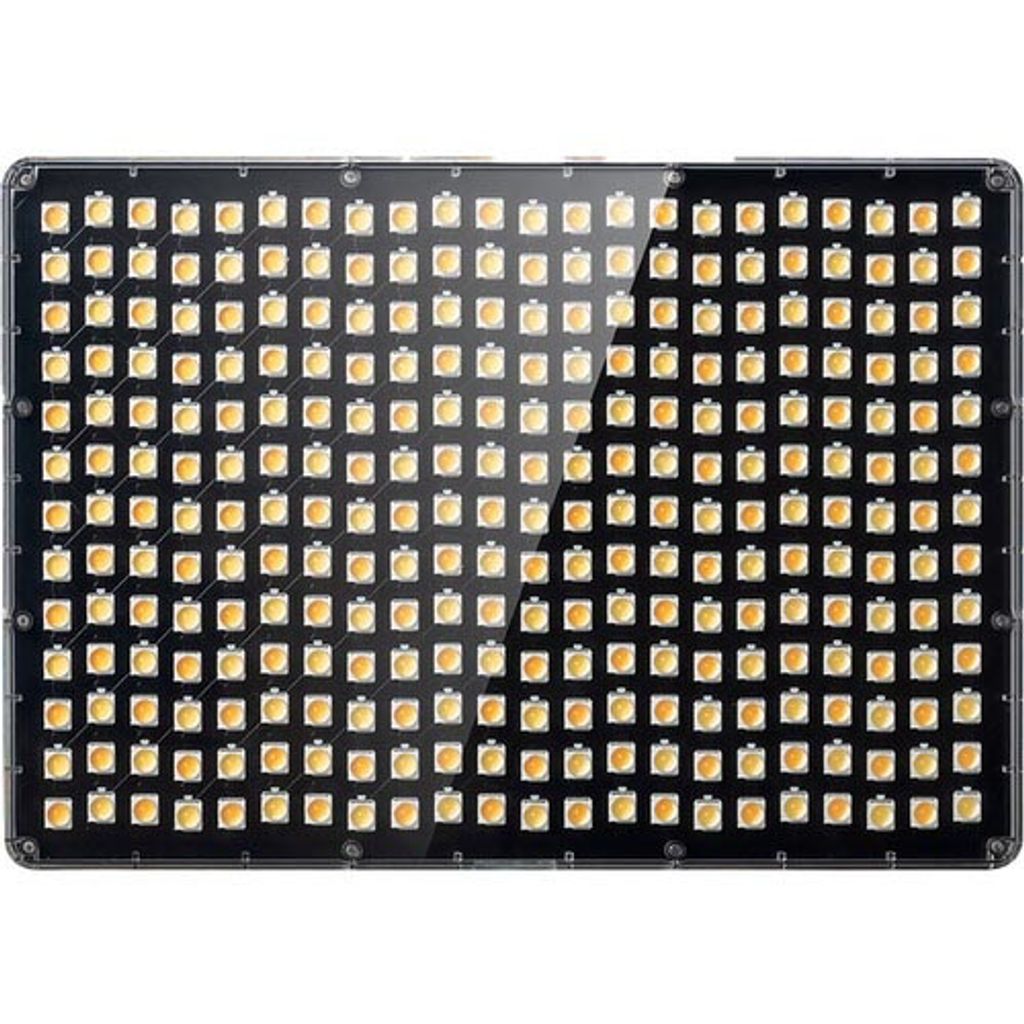

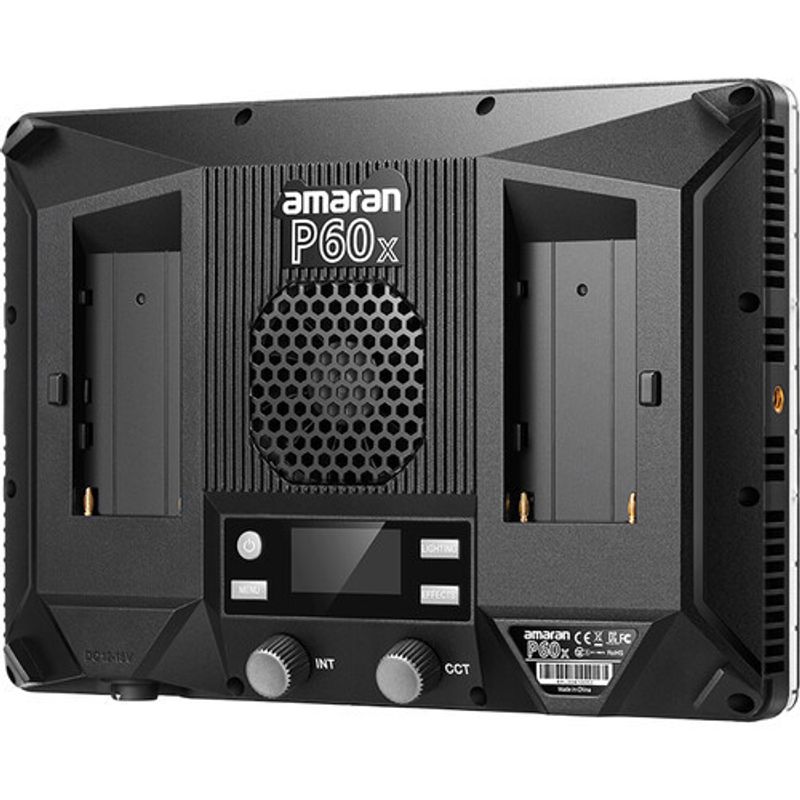

Amaran P60x LED Panel - Kit med 3 paneler
- Ställbar färgtemperatur
- Bra färgåtergivning
- 60W Output (78w)

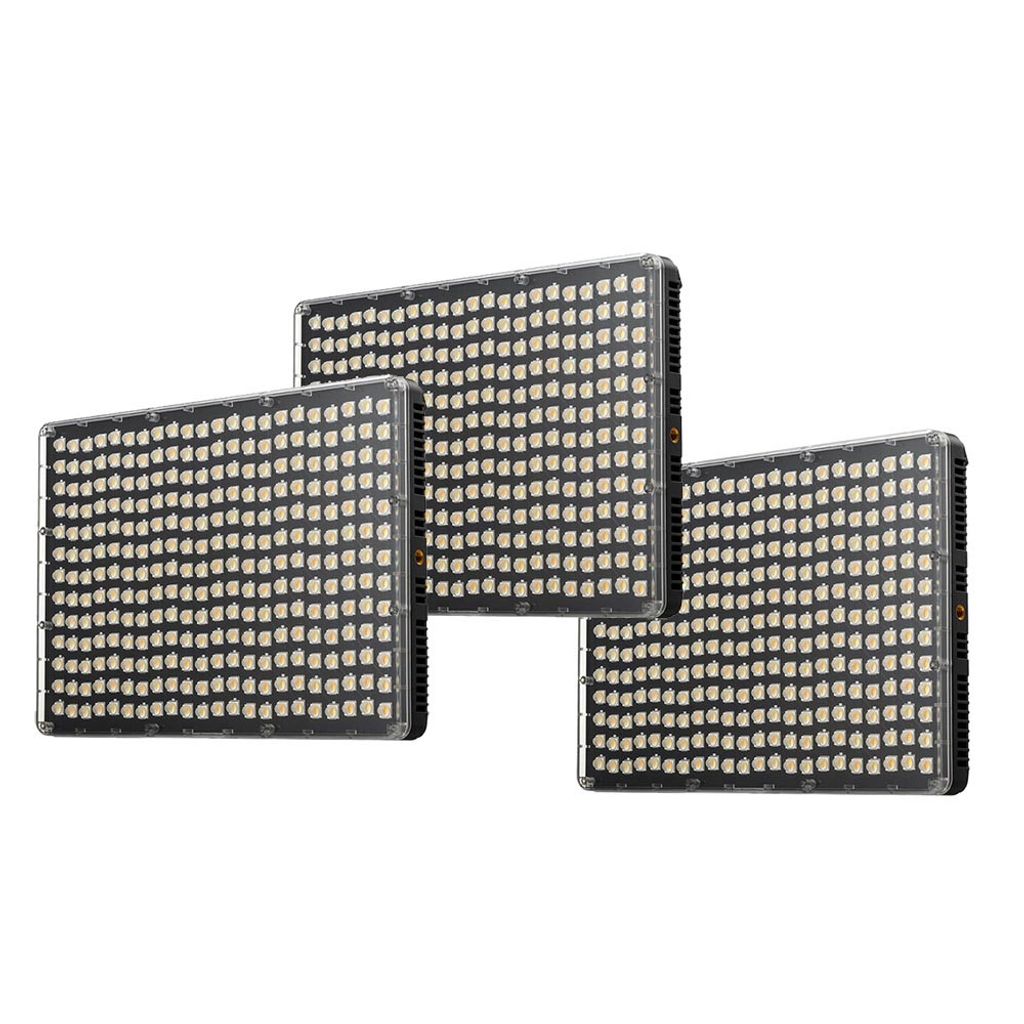

Amaran P60x med ställbar färgtemperatur 3200K till 6500K - Här i kit med 3 st paneler.

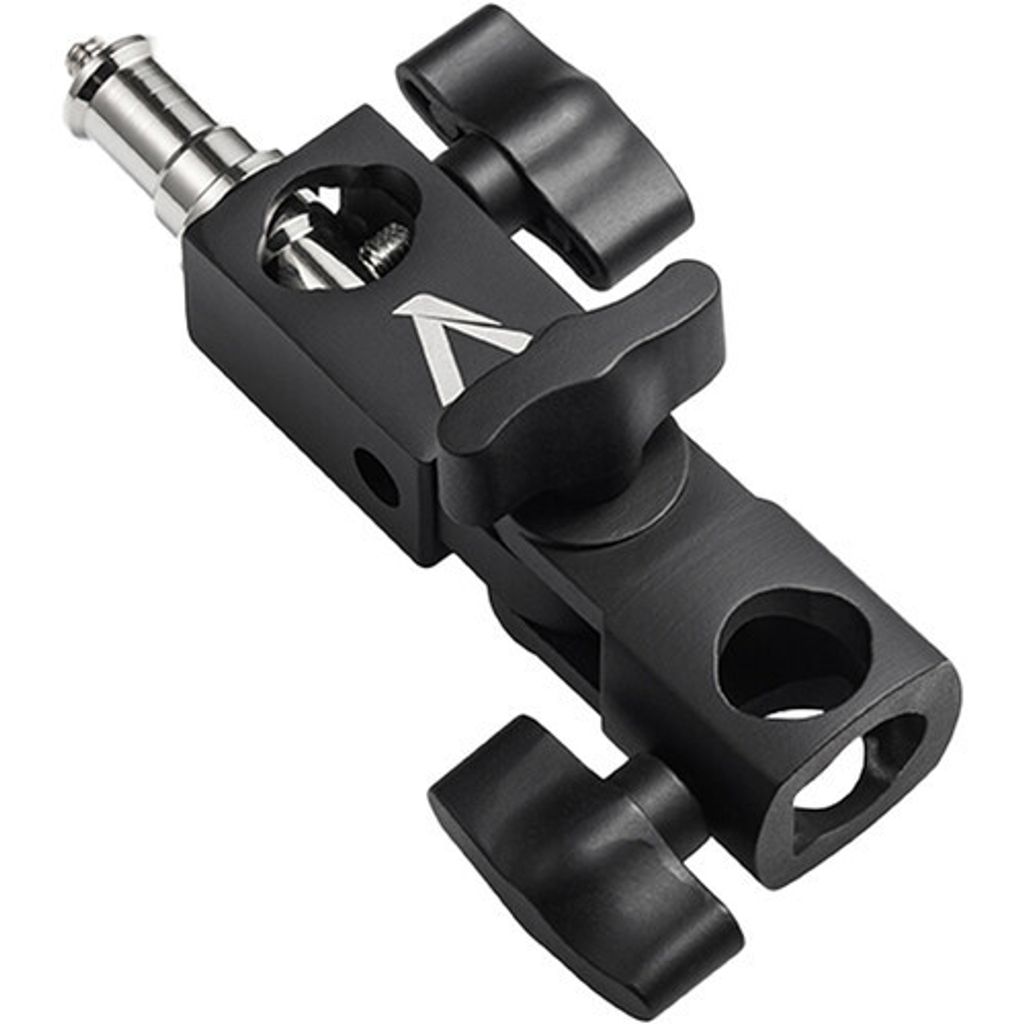

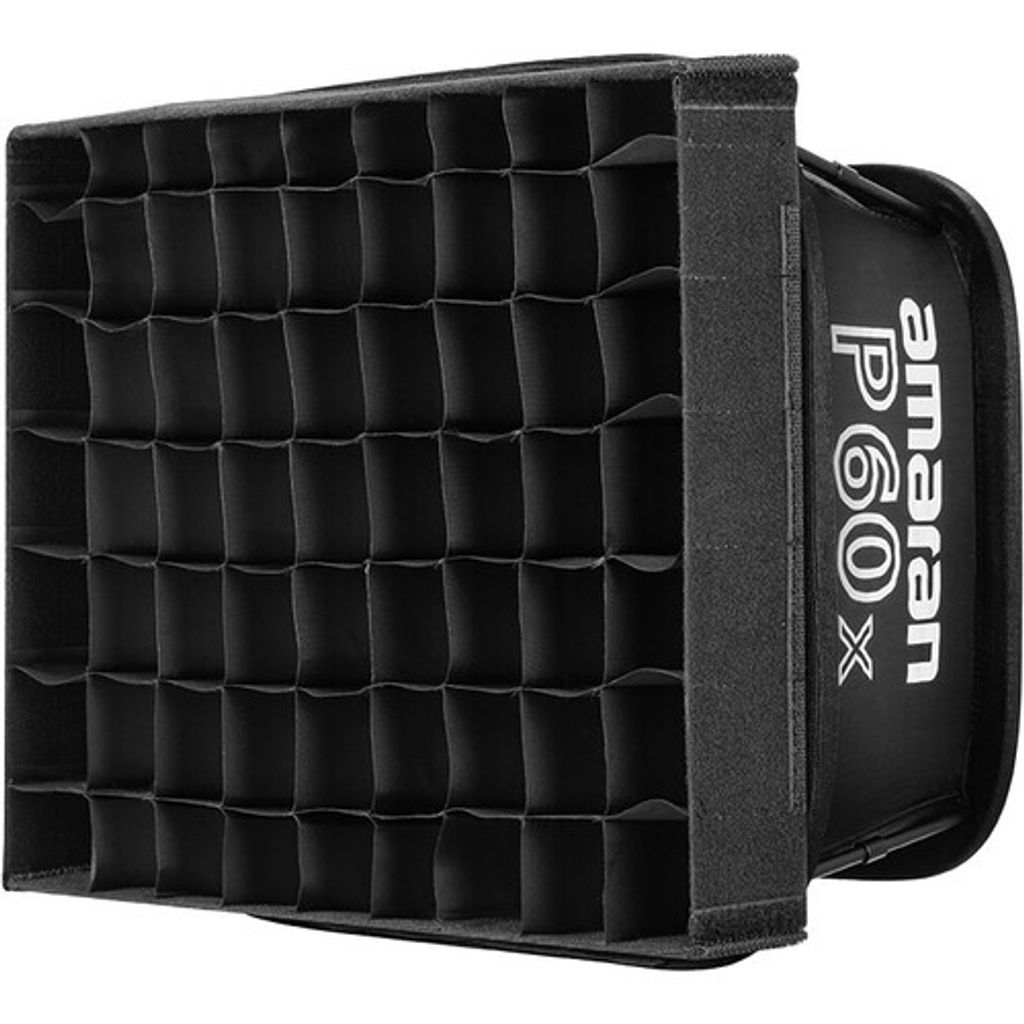

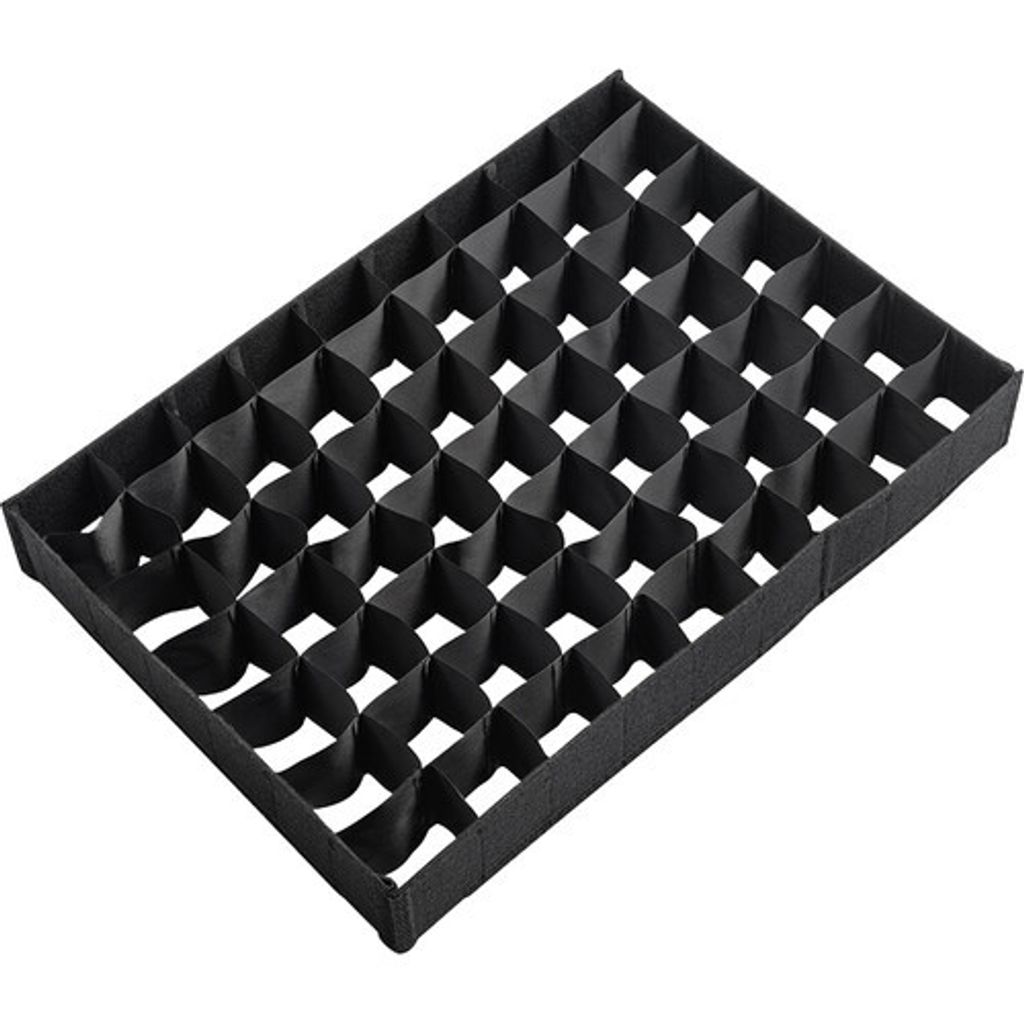

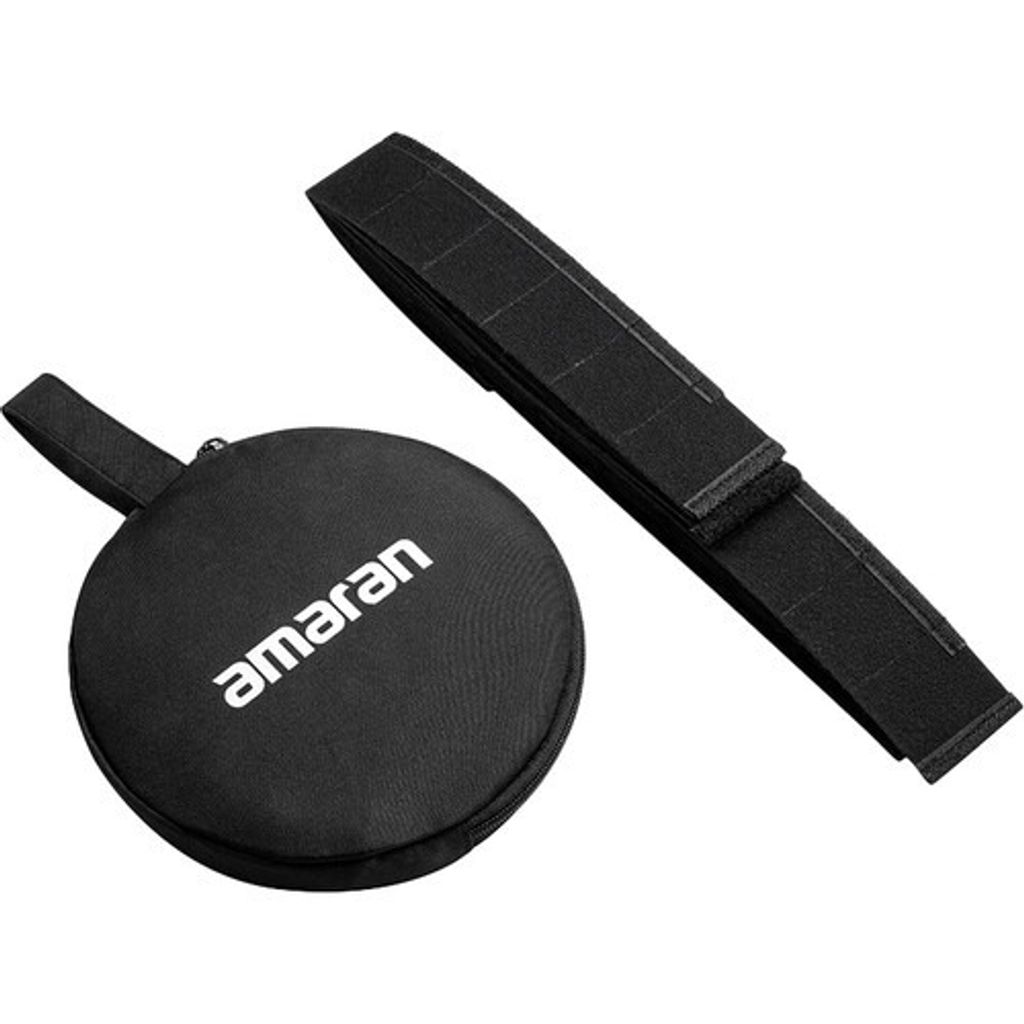

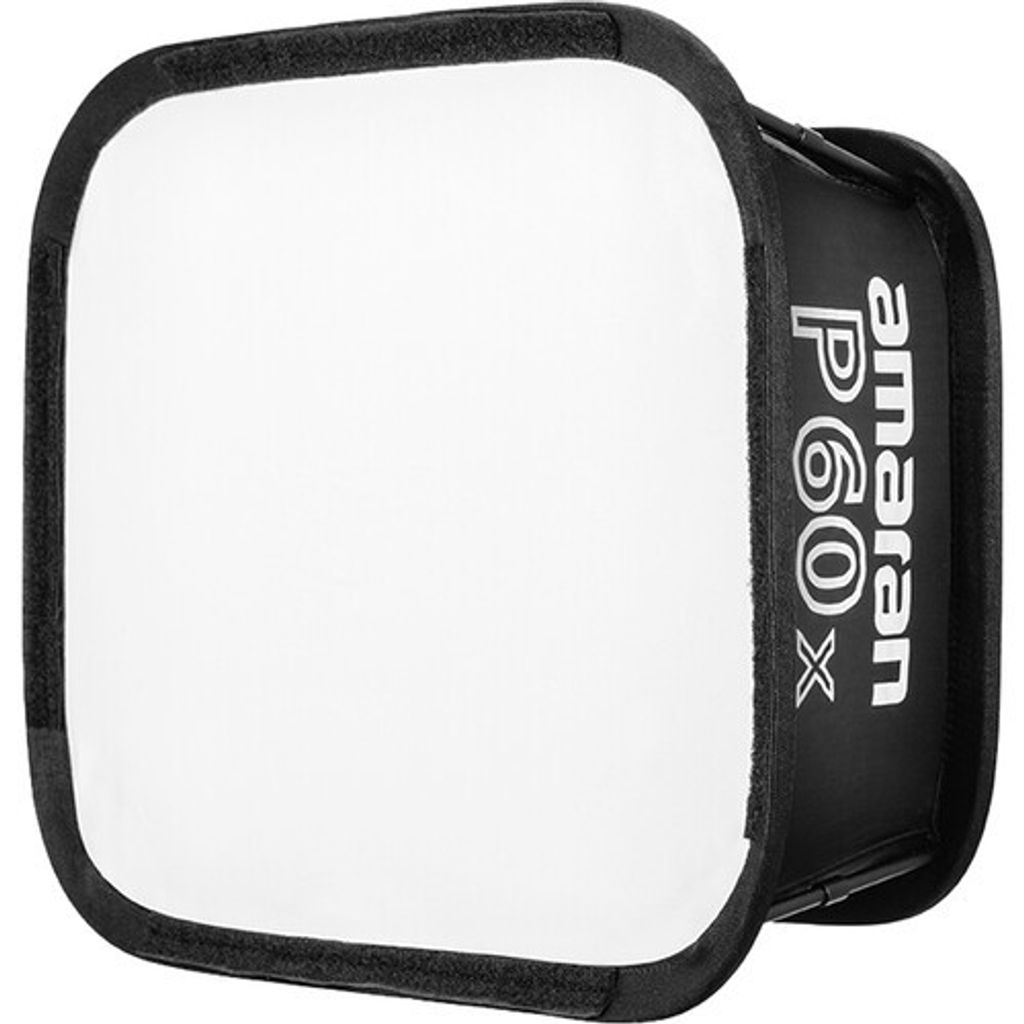

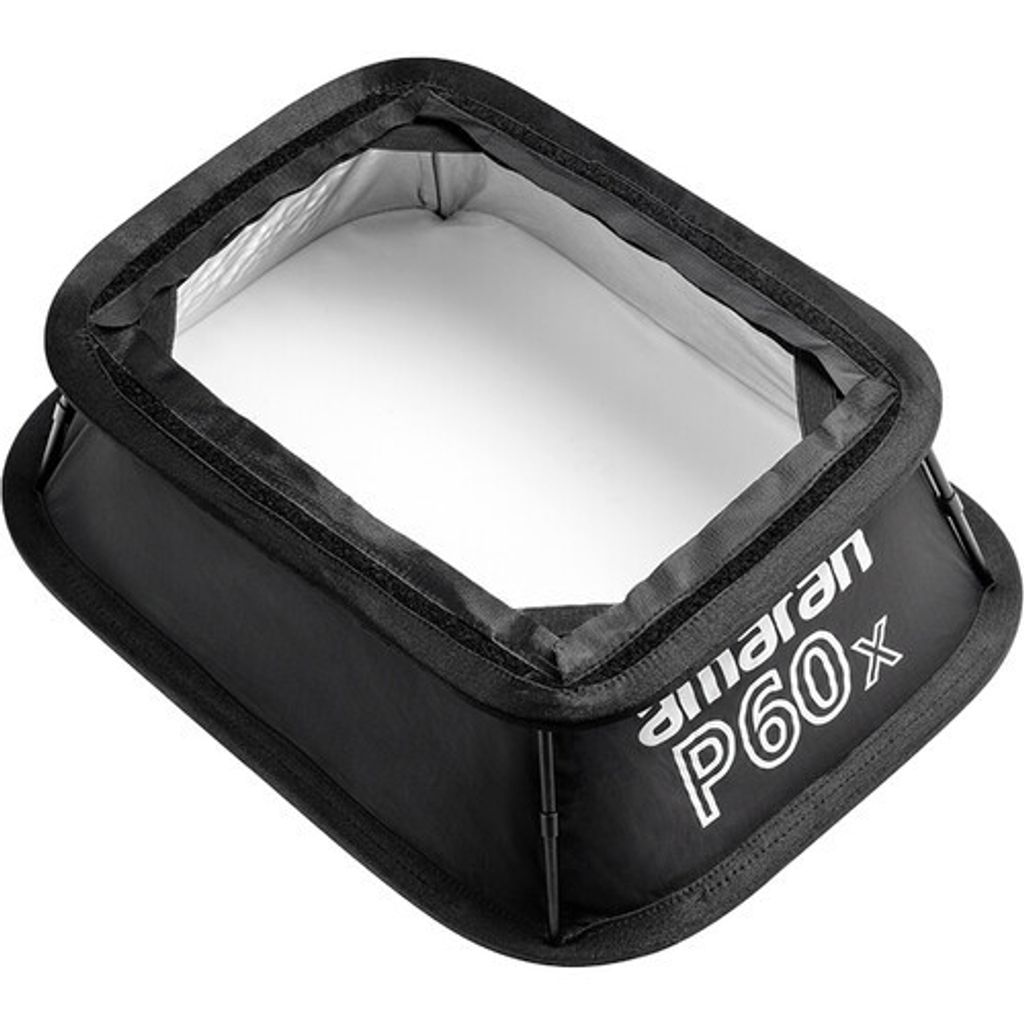

Alla paneler har medföljande softbox och raster samt tiltbart tillbehörsfäste.
Säljs även som ensam panel här: Amaran P60x LED Panel.
Specifications P60x
CCT |
3200K~6500K |
CRI |
≥95 |
TLCI |
≥97 |
CQS |
≥95 |
TM-30 RF (Average) |
93 |
TM-30 RG (Average) |
104 |
SSI (Tungsten) |
≥84 |
SSI (D56) |
≥72 |
Beam Angle (Half-Peak Angle) |
45° |
Max Power Output |
≤60W |
Max Power Consumption |
≤78W |
Operating Current |
4.5A |
Voltage (AC Power Supply) |
15V DC |
Voltage (D-Tap Battery) |
12-16.8V DC |
Voltage (NP-F Battery) |
6.5V-8.4V DC |
Battery Charging (Type) |
Sony NP-F Style |
DC Input |
2-Pin DC Self-locking Waterproof |
AC Power Cable |
Self-locking IEC C13 AC Power Cable (1.5m) |
Operating Temperature |
-20°C ~ 45°C / -4°F ~ 113°F |
Control Methods |
On-board, Sidus Link App |
Connectivity |
Bluetooth 5.0 (Sidus Mesh) |
Bluetooth Operating Range |
≥80m / 262.5ft |
Firmware Upgradeable |
Sidus Link OTA |

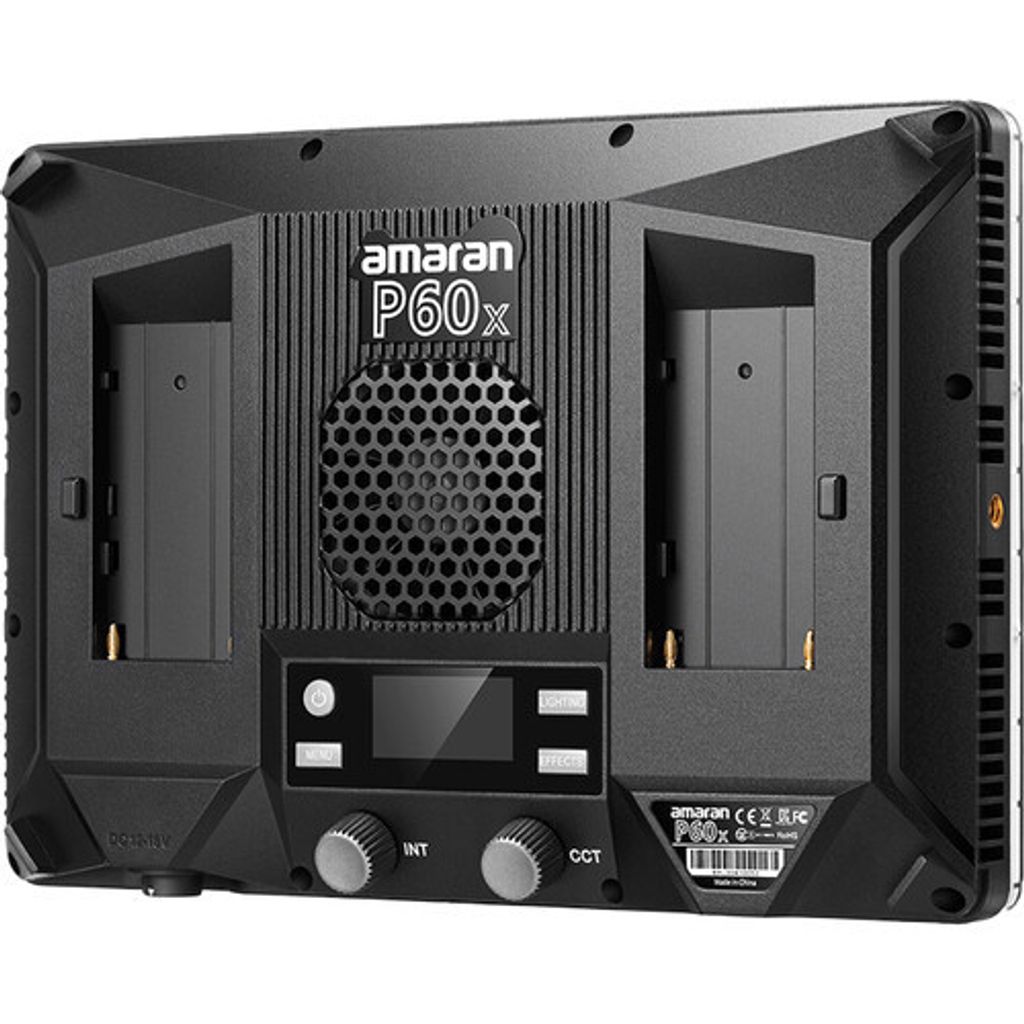

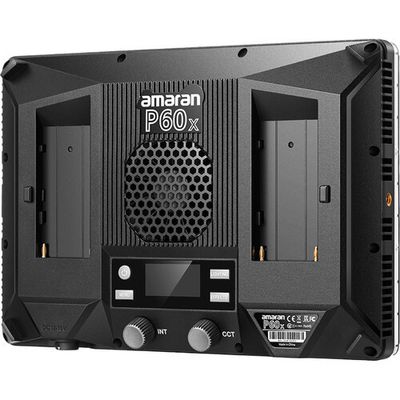

Display Type |
OLED |
Cooling Method |
Active Cooling |
Mounting |
1/4-20in * 3, Tilting Support Column |
Estimated LED Lifetime (L70) |
50,000 Hours |
Estimated Color Shift Over Lifetime (CCT) |
2% over 6,000 Hours |
Certifications |
CE, FCC, cTUVus, KC, NCC, ROHS |
Dimensions
Fixture |
25.1*17.5*3.95cm / 9.8*6.8*1.5in |
Aperture |
25.07*17.37cm / 9.87*6.84in |
Soft Box (Collapsed) |
20*20*2.5cm / 7.87*7.87*9.84in |
Soft Box (Built) |
39.5*28.5*10cm / 15.55*11.22*3.94in |

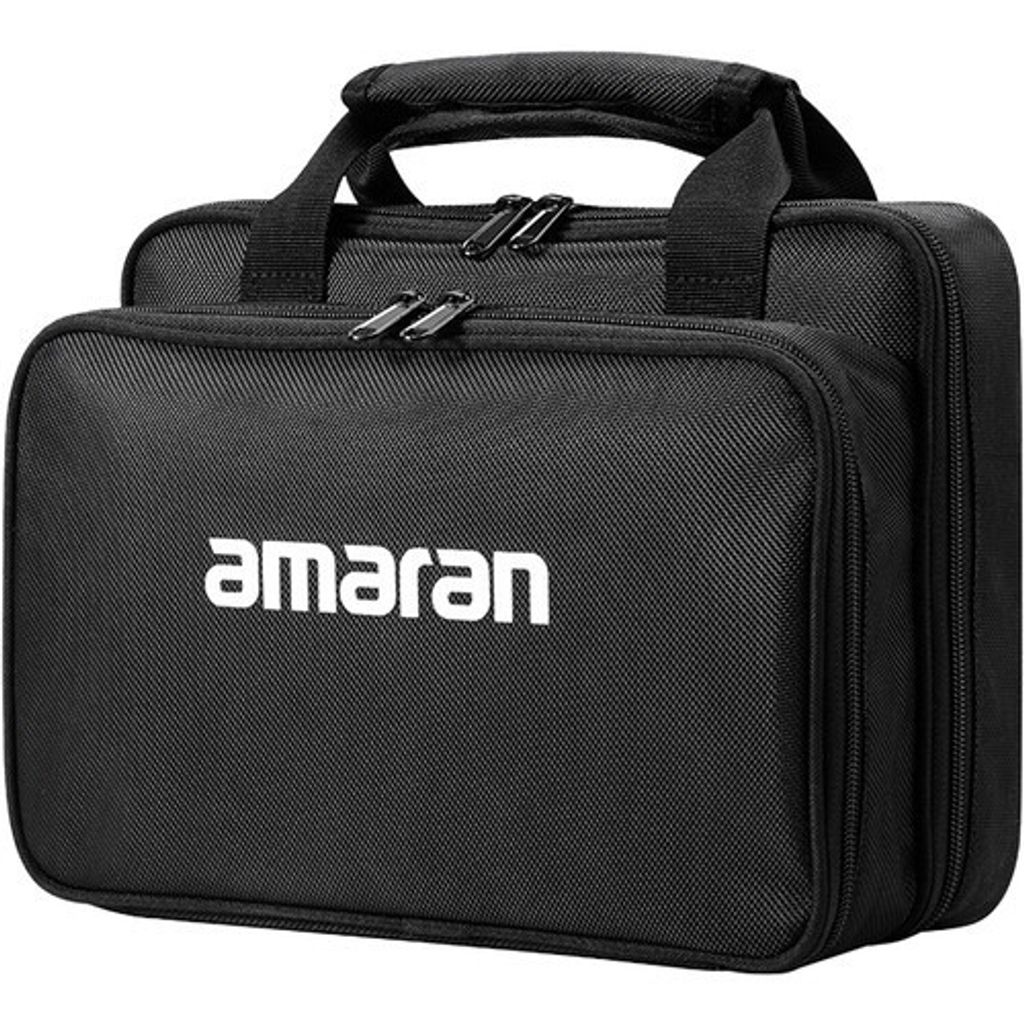

Carrying Case |
25.7*18*9.5cm / 10.12*7.09*3.74in |
Weight
Fixture |
0.979kg / 2.15lbs |
Soft Box |
0.17kg / .37lbs |
Power Supply |
0.50kg / 1.1lbs |
Mounting Bracket |
0.24kg / .52lbs |
Photometrics
|
|
|
|
CCT |
Distance |
No Softbox |
With Softbox |
|
.5M |
17,570 lux / 1,632 fc |
3,480 lux / 323 fc |
3200K |
1M |
4,860 lux / 452 fc |
971 lux / 90 fc |
|
2M |
1,280 lux / 119 fc |
254 lux / 24 fc |
|
3M |
539 lux / 50 fc |
116 lux / 11 fc |
|
|
|
|
|
.5M |
17,670 lux / 1,642 fc |
3,560 lux / 331 fc |
4300K |
1M |
4,940 lux / 459 fc |
991 lux / 92 fc |
|
2M |
1,283 lux / 119 fc |
261 lux / 24 fc |
|
3M |
550 lux / 51 fc |
119 lux / 11 fc |
|
|
|
|
|
.5M |
18,120 lux / 1,683 fc |
3,660 lux / 340 fc |
5600K |
1M |
5,070 lux / 471 fc |
1,023 lux / 95 fc |
|
2M |
1,328 lux / 123 fc |
268 lux / 25 fc |
|
3M |
572 lux / 53 fc |
123 lux / 11 fc |
|
|
|
|
|
.5M |
18,410 lux / 1,710 fc |
3,730 lux / 347 fc |
6500K |
1M |
5,180 lux / 481 fc |
1,041 lux / 97 fc |
|
2M |
1,354 lux / 126 fc |
273 lux / 25 fc |
|
3M |
585 lux / 54 fc |
126 lux / 12 fc |
